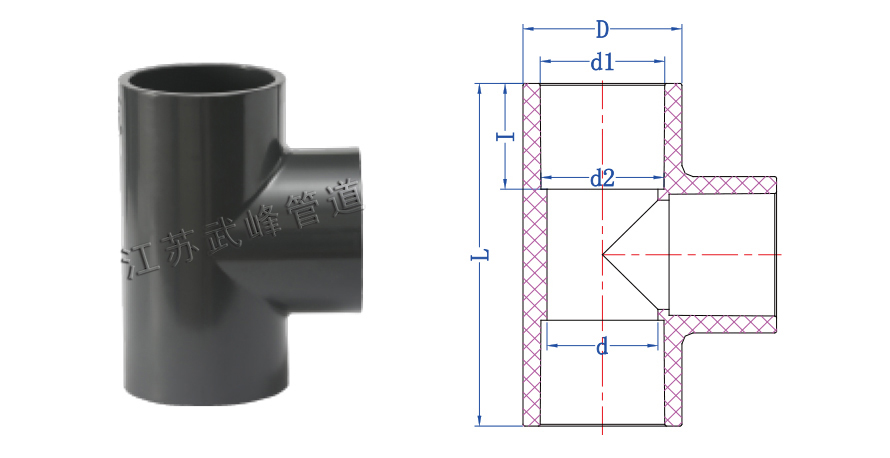

| Nominal | Socket Type | Structural Diameter | ||||
| SIZE | d1 | d2 | I | D | d | L |
| 1/2" | 20.3 | 20.1 | 16.0 | 27.0 | 17.0 | 56.0 |
| 3/4" | 25.3 | 25.1 | 19.0 | 33.0 | 23.0 | 66.0 |
| 1" | 32.3 | 32.1 | 22.0 | 41.0 | 29.0 | 80.0 |
| 1-1/4" | 40.3 | 40.1 | 26.0 | 50.0 | 37.0 | 96.0 |
| 1-1/2" | 50.3 | 50.1 | 32.0 | 61.0 | 47.0 | 118.0 |
| 2" | 63.3 | 63.1 | 38.0 | 75.0 | 60.0 | 143.0 |
| 2-1/2" | 75.3 | 75.1 | 44.0 | 92.0 | 72.0 | 171.0 |
| 3" | 90.3 | 90.1 | 51.0 | 110.6 | 87.1 | 197.0 |
| 4" | 110.4 | 110.1 | 61.0 | 127.0 | 106.1 | 238.0 |
| 5" | 140.5 | 140.2 | 77.0 | 162.0 | 133.0 | 307.0 |
| 6" | 160.5 | 160.2 | 86.0 | 186.0 | 154.0 | 338.0 |
| 8" | 200.6 | 200.2 | 130.0 | 240.0 | 185.0 | 540.0 |
